Drone Sentinel – Dedicated Hardware

Drone Sentinel – Dedicated Hardware

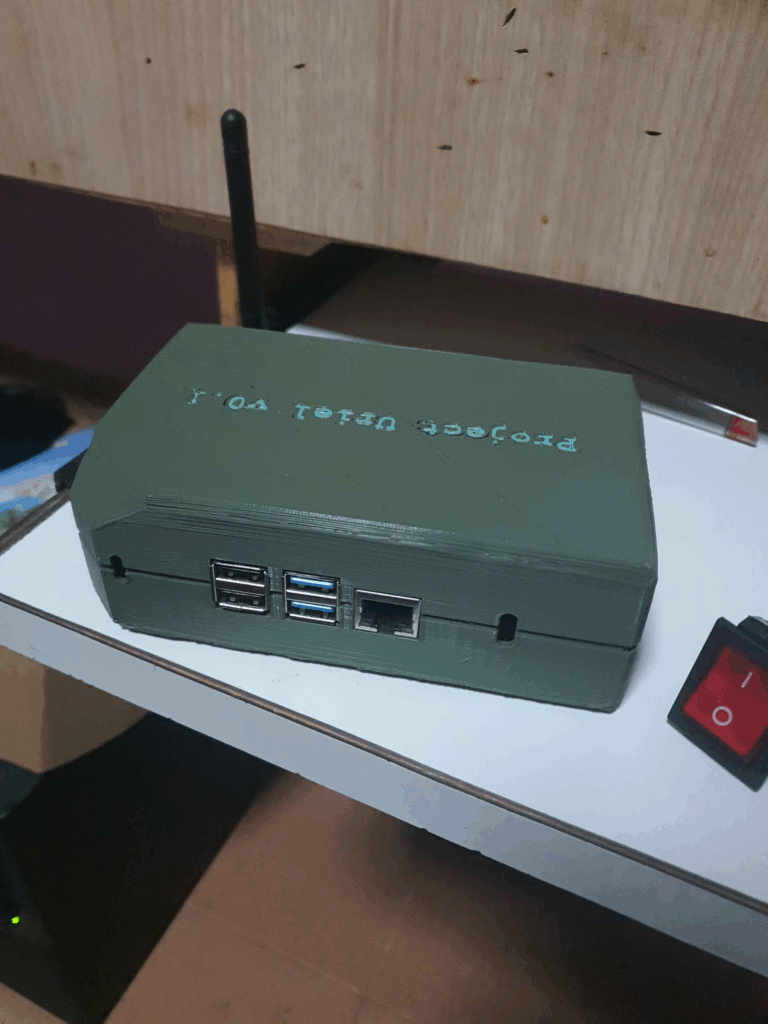

Drone Sentinel Core

🛰️ Drone Sentinel – Ukraine’s First War fighter Focused Acoustic Early-Warning System for Silent RF-Silent Fiber Drones 🎯 Detect What RF Can’t. Hear What You Can’t See. Get a Head

Start. 🔍 What Is Drone Sentinel? Drone Sentinel is the first-ever acoustic detection unit designed to spot fiber-controlled drones — the stealthiest drones in the…

Description

🛰️ Drone Sentinel – Ukraine’s First War fighter Focused Acoustic Early-Warning System for Silent RF-Silent Fiber Drones

🎯 Detect What RF Can’t. Hear What You Can’t See. Get a Head Start.

🔍 What Is Drone Sentinel?

Drone Sentinel is the first-ever acoustic detection unit designed to spot fiber-controlled drones — the stealthiest drones in the sky.

Unlike traditional drones, fiber drones don’t emit RF, GPS, or any wireless signal — they fly under the radar, literally.

🔇 No WiFi.
🔇 No GPS.
🔇 No RF emissions.
🧠 Just silent, cable-tethered missions with zero traditional traceability.

But there’s one thing they can’t hide…
Sound. 🧏

🔊 The Solution: Drone Sentinel

Drone Sentinel uses real-time acoustic analysis to detect and triangulate the presence of nearby drones — even those controlled entirely via fiber optics.

🎧 Acoustic sensing
📡 Zigbee + mesh comms
🌐 Protocol extensible (LoRa, BLE, etc.)
🔋 Low-power hardware
🛠️ Rugged and field-deployable

Designed for use in quiet zones, Drone Sentinel can detect drone motor acoustics from up to 300 meters away, giving operators, security teams, or even hobbyists an early warning system.

🧠 How It Works

  1. Passive Listening — High-sensitivity MEMS microphones listen for specific frequency bands generated by drone propellers.
  2. Signal Processing — Acoustic signature is analyzed in real-time onboard.
  3. Protocol Alerts — When detected, nodes send alerts via LoRaWan / custom mesh protocols.
  4. Heads Up Warning — Alerts go to your dashboard or field device — giving you reaction time before the drone is even visible.

🛡️ Why Drone Sentinel Matters

🛑 You can’t jam what you can’t detect.
🧭 RF scanners, SDRs, and spectrum analyzers are useless against fiber drones.
🎧 Only passive acoustic detection gives you a chance.

Whether you’re defending critical infrastructure, protecting VIPs, or just need to know what’s in the sky — Drone Sentinel hears what the airwaves can’t show.

🧰 Ideal For:

🔒 Security teams – Perimeter early warning
🎯 Military operations – Passive detection without broadcasting position
📡 RF-restricted zones – Situational awareness with no emissions
🧪 Drone testers + researchers – Ground truth data + detection testing

⚙️ Tech Specs

FeatureSpec
MicrophoneMEMS wide-band acoustic array
Detection RadiusUp to 500m in quiet conditions
CommunicationZigbee Mesh (expandable to LoRa/BLE) (Optional)
BoardModified Piboard with MCU
PowerUSB or battery powered (5V)
SizePalm-sized, ruggedized enclosure

⚠️ 2x 18650 Batteries Not Included

🎤 The Future of Detection Is Silent

If fiber drones are the ghost in the sky…
Drone Sentinel is the whisper detector.

🧠 Smart
🎧 Silent
📡 Networked
🪖 Ready

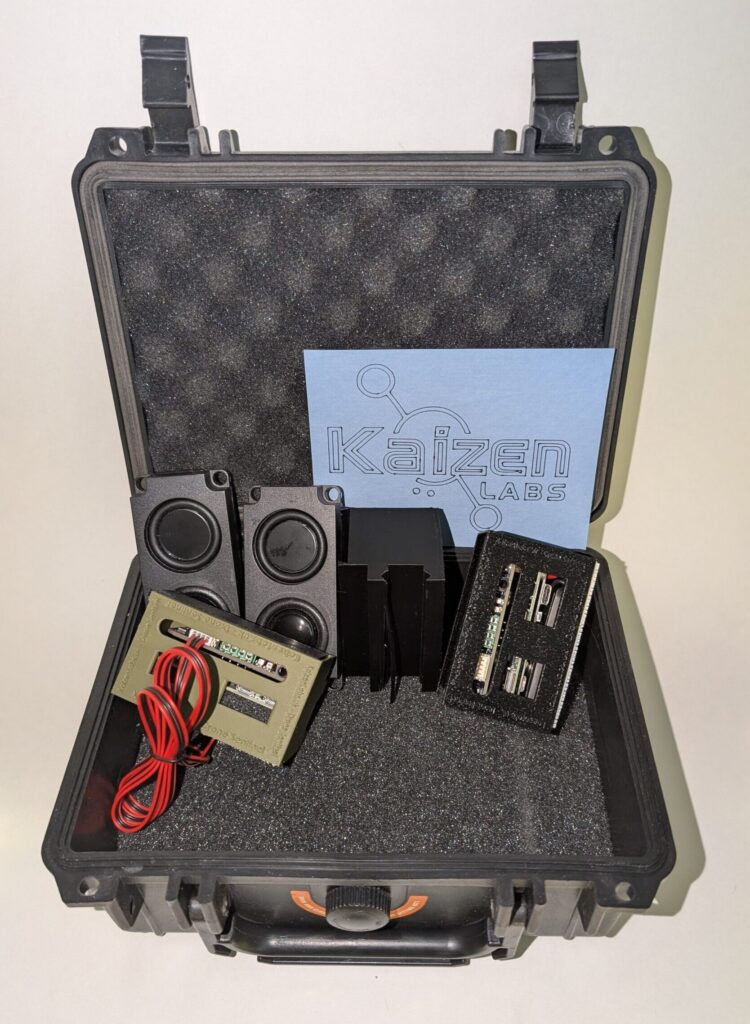

Drone Sentinel Nano

🛰️ Drone Sentinel Nano – Personal Acoustic Early-Warning for Silent Fiber Drones 🎯 Detect What RF Can’t. Personal Protection. Head-Mounted Awareness. 📺 AS FEATURED ON NEWS 4 TUCSON KVOA Demonstrated at Fort Huachuca’s EXTIC military technology event 🔍 What Is Drone Sentinel Nano? Drone Sentinel Nano is a personal acoustic detection unit designed for individual…

Description

🛰️ Drone Sentinel Nano – Personal Acoustic Early-Warning for Silent Fiber Drones 🎯 Detect What RF Can’t. Personal Protection. Head-Mounted Awareness.

📺 AS FEATURED ON NEWS 4 TUCSON KVOA Demonstrated at Fort Huachuca’s EXTIC military technology event

🔍 What Is Drone Sentinel Nano? Drone Sentinel Nano is a personal acoustic detection unit designed for individual operators who need to spot fiber-controlled drones in the field.

Unlike traditional drones, fiber drones don’t emit RF, GPS, or any wireless signal — they fly under the radar, literally. 🔇 No WiFi. 🔇 No GPS. 🔇 No RF emissions. 🧠 Just silent, cable-tethered missions with zero traditional traceability.

But there’s one thing they can’t hide… Sound. 🧏

🔊 The Solution: Drone Sentinel Nano Drone Sentinel Nano uses AI spectrograph technology to detect and alert you to nearby drones — even those controlled entirely via fiber optics.

🎧 Advanced audio processing 🪖 Pic/NATO rail mount 🔋 Integrated battery system ⚡ Modular alert system 🛠️ Battlefield-ready durability

Designed for individual operators, Drone Sentinel Nano can detect drone motor acoustics with an average range of 50 meters for full-throttle FPV drones, giving you personal early warning directly on your helmet.

🧠 How It Works

  1. Passive Listening — Professional-grade microphone module captures drone acoustic signatures across target frequency bands.
  2. AI Analysis — Spectrograph technology processes audio in real-time to identify drone signatures.
  3. Personal Alert — Immediate notification via audio alert (default) or swappable JST-connected modules.
  4. Head’s Up Warning — Get reaction time before the drone is even visible or audible to you.

🛡️ Why Drone Sentinel Nano Matters 🛑 You can’t jam what you can’t detect. 🧭 RF scanners, SDRs, and spectrum analyzers are useless against fiber drones. 🎧 Only passive acoustic detection gives you a chance. 🪖 Personal protection without compromising your position.

Whether you’re on patrol, conducting reconnaissance, or operating in contested areas — Drone Sentinel Nano hears what the airwaves can’t show.

🧰 Ideal For: 🪖 Individual operators – Personal early warning system 🎯 Battlefield deployment – Silent detection without broadcasting position 📡 RF-restricted operations – Situational awareness with zero emissions 🔒 Personal security – Individual threat detection

⚙️ Tech Specs

FeatureSpec
Audio ProcessingProfessional-grade microphone module
Detection TechnologyAI spectrograph frequency analysis
Average Range50m (full-throttle FPV drones)
Max Range300m (ideal silent battlefield conditions – Ukraine tested)
CommunicationNone (personal use only)
MountingPic/NATO rail mount included
PowerIntegrated battery system (included)
AlertsAudio (default), JST swappable modules
Size80mm x 50mm x 50mm
DurabilityDrop resistant, IP 6x mil-spec available

✅ Battery Included – Ready for Immediate Deployment 🔌 JST Modular Alerts – Customize Your Warning System

📺 PROVEN IN THE FIELD Featured on News 4 Tucson KVOA and demonstrated at Fort Huachuca’s military technology showcase

🎤 Personal Protection Made Silent If fiber drones are the ghost in the sky… Drone Sentinel Nano is your personal ghost detector.

🧠 Smart 🎧 Silent 🪖 Personal 🚀 Ready

Note: This is the personal variant of the Drone Sentinel Core system — designed for individual rather than networked deployment.

Drone Sentinel Go

Portable Acoustic Drone Detection System

Description

The Drone Sentinel Go is a compact, battery-powered acoustic detection system designed for rapid deployment and mobile operations. This lightweight unit provides real-time drone detection capabilities for field teams, security personnel, and tactical operations requiring immediate airspace awareness without the complexity of traditional radar systems.

Built for mobility and ease of use, the Sentinel Go operates autonomously once deployed, continuously monitoring acoustic signatures to detect unauthorized drone activity. The system’s portable design enables quick setup in temporary locations, remote areas, or dynamic operational environments where traditional detection infrastructure is impractical.

Key Features

Portable Design

  • Ultra-lightweight form factor for field deployment
  • Battery-powered operation for up to 72 hours continuous monitoring
  • Quick-deploy setup in under 2 minutes
  • Weather-resistant housing for outdoor operations
  • Carry case included for field transport

Acoustic Detection Technology

  • Real-time acoustic signature analysis
  • Detection range: up to 800 meters
  • Multi-rotor and fixed-wing drone identification
  • Operates in all weather conditions and lighting
  • No electromagnetic emissions for covert operation

Autonomous Operation

  • Plug-and-play deployment
  • Self-calibrating acoustic sensors
  • Automatic threat classification
  • 24/7 continuous monitoring capability
  • Local data caching during network outages

Smart Connectivity

  • Secure encrypted communication protocols
  • Real-time alert transmission
  • Integration with Sentinel network ecosystem
  • Mobile app dashboard connectivity
  • Offline operation with sync capability

Technical Specifications

Detection Performance

  • Detection Range: 800 meters (typical conditions)
  • Frequency Range: 20Hz – 20kHz
  • Detection Accuracy: >90% for known drone types
  • False Alarm Rate: <5%
  • Response Time: <3 seconds from detection to alert

Physical Characteristics

  • Dimensions: 250mm x 180mm x 120mm
  • Weight: 2.1 kg (including battery)
  • Operating Temperature: -20°C to +60°C
  • IP Rating: IP65 (dust/water resistant)
  • Mounting: Tripod mount, magnetic base, or stake mount

Power System

  • Battery Type: Lithium-ion rechargeable
  • Capacity: 15,000 mAh
  • Operating Time: 72 hours (continuous operation)
  • Charging Time: 4 hours (full charge)
  • Power Consumption: 8W average
  • Solar charging option available

Communication

  • Primary: 4G LTE cellular
  • Secondary: WiFi 802.11ac
  • Backup: Satellite communication (optional)
  • Range: Unlimited (cellular coverage dependent)
  • Encryption: AES-256
  • Mesh networking capability

Environmental Specifications

  • Humidity: 0-95% non-condensing
  • Altitude: Sea level to 3,000 meters
  • Wind Resistance: Up to 50 km/h
  • Shock Rating: MIL-STD-810G
  • Vibration Resistance: 5G operational

Applications

Military and Tactical Operations

  • Forward operating base perimeter monitoring
  • Convoy route security assessment
  • Temporary checkpoint deployment
  • Special operations area surveillance
  • Mobile command post protection

Law Enforcement

  • Crime scene perimeter security
  • Special event monitoring
  • Border patrol support
  • Drug enforcement operations
  • Surveillance detection

Emergency Response

  • Disaster zone airspace monitoring
  • Search and rescue operations
  • Wildfire incident command support
  • Hurricane response deployment
  • Mass casualty event security

Private Security

  • Executive protection details
  • Corporate event security
  • Construction site monitoring
  • Agricultural crop protection
  • Estate and property security

Research and Environmental

  • Wildlife research site protection
  • Archaeological dig security
  • Environmental monitoring stations
  • Remote facility surveillance
  • Scientific expedition support

Software and Integration

Detection Algorithm

  • Machine learning-based acoustic classification
  • Adaptive noise filtering
  • Environmental condition compensation
  • Continuous algorithm updates via cloud
  • Custom signature library support

User Interface

  • Mobile application for iOS and Android
  • Real-time detection dashboard
  • Historical data analysis
  • Alert management system
  • Multi-unit coordination interface

Network Integration

  • Seamless integration with Sentinel Core and Nano systems
  • Central command dashboard compatibility
  • Third-party security system integration
  • API access for custom applications
  • Cloud-based data analytics

Alert System

  • Instant push notifications
  • Email and SMS alerting
  • Visual and audible local alerts
  • Escalation procedures
  • Custom alert zones and sensitivity

Installation and Deployment

Rapid Deployment Process

  1. Site Selection (30 seconds)
    • Choose elevated position with clear acoustic line of sight
    • Avoid high-noise environments
    • Consider prevailing wind patterns
  2. Physical Setup (60 seconds)
    • Deploy using tripod, magnetic base, or ground stake
    • Ensure stable mounting
    • Orient unit for optimal coverage
  3. System Activation (30 seconds)
    • Power on unit
    • Automatic network connection
    • GPS positioning and calibration
    • Begin monitoring operation

Training Requirements

  • Basic operator training: 2 hours
  • Field deployment certification: 4 hours
  • Advanced configuration: 8 hours
  • Network administration: 1 day

Maintenance

  • Daily: Battery level check
  • Weekly: Housing inspection and cleaning
  • Monthly: Software updates
  • Annually: Sensor calibration
  • Mean Time Between Failures: 8,760 hours

Support Package

  • 24/7 technical support hotline
  • Remote diagnostic capabilities
  • Firmware updates over-the-air
  • Replacement unit program
  • Field service support

Deployment Configurations

  • Single Unit: Individual site monitoring
  • Cluster Deployment: Multiple units for area coverage
  • Mobile Operation: Vehicle-mounted for patrol use
  • Temporary Events: Quick setup/teardown capability
  • Long-term Installation: Semi-permanent positioning

The Drone Sentinel Go provides unmatched portability and deployment flexibility for acoustic drone detection, delivering professional-grade security capabilities wherever threats may emerge.Retry
